GSP AXLE PROBLEM - URGENT

Post by ARCHINSTL »

No, not a recall of yours - just a problem with mine.
I installed the wheels and had just tightened the nuts "fairly tight" by hand (no cheater bar) - NOwhere near the 137 ft-lbs necessary. I just wanted to get the wheels on the ground to do the "bounce" and tighten a couple of bushings and then torque the axle nuts (the big OE flat washer was under the nuts).

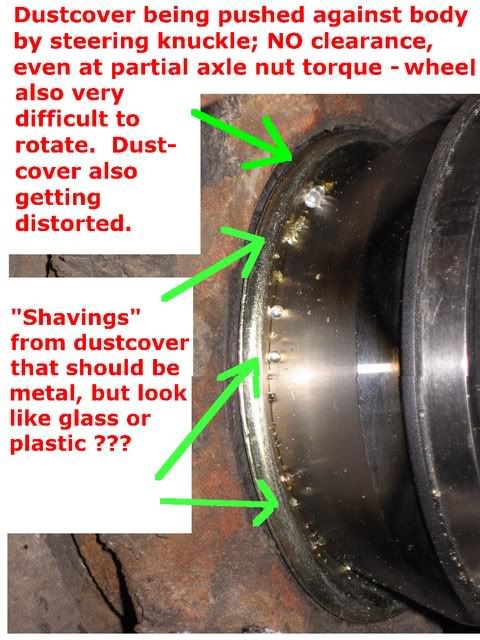

The wheels were really hard to turn (still raised). Then I noticed the GSP outer dustcovers were being squeezed by the knuckle onto the outer "body" of the axle; there is no gap, which would be necessary for the wheel to turn. I backed off on the nuts all the way, and this eased the pressure and the wheel turned easily.

I did not torque the axle nuts, and obviously did not take it for a drive.

These are the correct axles; the numbers match several vendors, as well as listed on our site several times. There were no directions.

Has anyone else with GSP encountered this? I will call GSP today - but am in a quandary - no one else has mentioned this, whether for GSP or any other axles.
HELP!
Thanks,
Tom M

XXXXXXXXXXXXXXXXXXXXXXXXXXXXX

EDIT - MEA CULPA to splatterdog - it is his photo I purloined and not neonsport's. :oops:

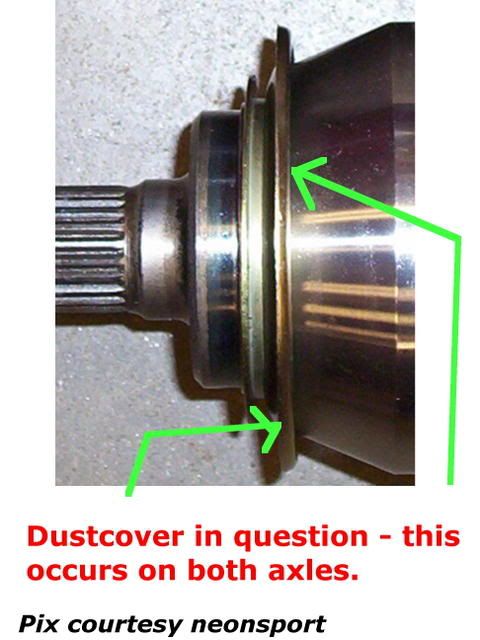

This is his photo of his axle - not mine:

EDIT - MEA CULPA to splatterdog - it is his photo I purloined and not neonsport's. :oops:
This is his photo of his axle - not mine:
Last edited by ARCHINSTL on Wed Nov 21, 2007 1:23 pm, edited 4 times in total.
T4WD augury?
"Oh, do not ask, 'What is it?' Let us go and make our visit."
T.S. Eliot - "The Love Song of J. Alfred Prufrock"
"Now and then we had a hope that, if we lived and were good, God would permit us to be pirates."
Mark Twain
User avatar
splatterdog
Highest Ranking Member
Posts: 1628
Joined: Sun Mar 26, 2006 10:26 am
Location: Minnesota, USA

Post by splatterdog »

Sorry to hear of your troubles, especially since I gave them my full endorsement a while back. I just double checked mine and the clearance is what I would consider perfect. I had zero interference at install even with rust buildup on the knuckle.

It looks like your shield is pushed on as far as it can be. With the shaft out, how does it compare to mine? Also compare the depth of the large round machined shoulder with the old shafts. If they are dropping too deep into the hub that could cause it also.
User avatar
Petros
Highest Ranking Member
Posts: 11941
Joined: Sun Jan 28, 2007 6:31 pm
My tercel:: '84 Tercel4wd w/extensive mods
Location: Arlington WA USA

Post by Petros »

It appears that for some reason the axle spline shaft is going further into the the hub spline than it should causing the interference. Is there some kind of spacer or washer on the inside of the hub that is missing? I do not recall anything there (I have replaced axles several times). Perhaps the new axles are machined differently at the shoulder. Even if you did not have the dust covers in place you likely would get binding there.

You need to compare the old axle with the new one if possible. Specifically you need to measure the distance from the shoulder to the dust cover location.
'87 Tercel 4wd SR5 (current engine swap project)
'84 Tercel 4wd (daily driver, with on going mods)
'92 Mazda MPV 4wd (wife's daily driver)
'85 Tercel 4wd DLX auto(daughter's daily driver)
'01 Honda Civic (other daughter's daily driver)
User avatar
neonsport
Top Notch Member
Posts: 412
Joined: Tue Jan 10, 2006 7:13 pm

Post by neonsport »

The only issue I had with mine is that on the driver's axle, the hole for the cotter pin was drilled slightly farther out then the stocker. The only thing this caused was a jingling of the locking ring as I drove the car. I solved it by slightly bending the cotter pin to put pressure on the locking ring. Other than that, my axles have been perfect. I'm still amazed at the ability to turn at full lock, even under power, without a single pop from the axles.

I'm at a loss as to your problem. I'd recommend contacting Rock Auto, and see if they'll have the axles picked up and replaced since they're defective. If not, contact GSP directly and tell them what's happening.
"And to see you're really only very small
and life flows on within you and without you." George Harrison
keith
Highest Ranking Member
Posts: 1249
Joined: Sat Sep 30, 2006 1:04 pm
Location: Tennessee

Post by keith »

I'm inclined to think that the inner wheel bearing race is stuck on your old axles.
User avatar
ARCHINSTL
Goldie Forever
Posts: 6369
Joined: Sat Apr 30, 2005 1:52 pm
My tercel:: Goldie is a 1986 SR5 attualmente con Weber/also owned the first T4WD in STL in late '82
Location: Kirkwood, a 'burb of St. Louis

Post by ARCHINSTL »

Well - the GSP tech rep promised to call back after viewing the link to this thread, but never did. Maybe Friday?

His initial reaction AM Wednesday was to recommend removal of the flingers, aka dust covers. He said they were not really needed (I figure they are on there for a reason). He also verified that the numbers are the correct axles. He wanted "the engineer" to take a look at this thread, but said the answer would probably be the same. He thought that perhaps the flinger was not installed far enough...?

keith - the axles came off clean and nothing was hanging to them; they seemed to my eyes to be like the one in your photos of the old vs. new (with the OE-installed flinger). *

neonsport - I'll write Rock Auto tonite, outlining the problem.

Petros - there seems to be no spacer missing. Nothing is shown in the FSM, and when I took out the old axles, the rubber dust deflector was still firmly in place over the bearing seal (NSK, I think). Nothing fell out/off the knuckle upon axle removal. *

splatterdog - the axles are still in the car, pending word from GSP. I don't fancy lying in the wet and cold at this moment to pull them again. They don't really look any different than your GSP pix, although I had no cause to make any measurements before installation.

THANKS to all who took the time to reply. I will post a resolution when, well, resolved. This was indeed disappointing, as I got it all in before the weather changed.

One thing - with the new springs/struts, the car now sits approximately 1 1/2" higher at the front control arm measuring point; LOTS of space between the tire and fender lip. The FSM spec at the control arm bolt is 235mm, my old was about 200mm, and the new is about 238mm, or just above the OE . That is an approximate measurement, as it's on a gravel driveway. I think the headlights' aiming will be a lot better now!
The 13"s look kinda wimpy now.
Tom M.

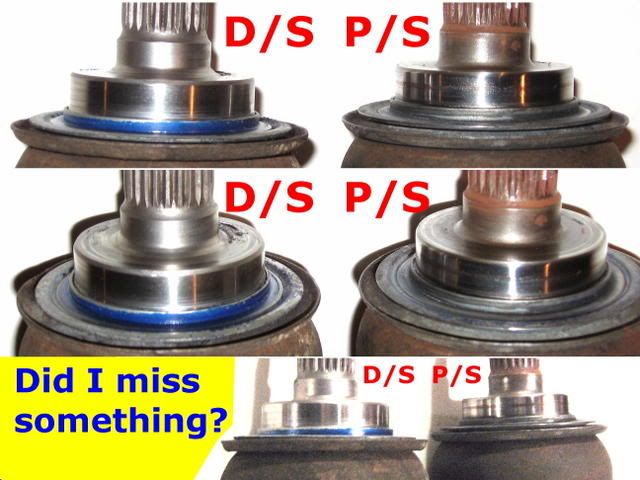

* This is a photo of the ends of the old axles -did I miss something in their removal? If so, how do I remove it/them?
